Boat Facts

Ellida is a sailing yacht designed for ocean cruising, fitted out by ourselves, Graham and Liz Harcombe, and our friend James Elliott.

Having taken three years to complete the fitting out, Ellida left her home port of Liverpool in May 2000.

Jump to the gallery

Ellida is a Saltram 40 built by K R Skentelbery and Sons of Laira Bridge, Plymouth.

She was delivered in a sail away stage. In precise terms this can be described as follows:-

Hull, deck, cockpit and coachroof were complete with portlights and hatches fitted.
Standing rigging had been fitted and dismounted in preparation for delivery by road.
Auxiliary engine fitted but not capable of being run due to lack of peripherals e.g. anti syphon system, control panel, throttle and gear controls etc.
Bulkheads fitted between saloon and foreward section, between forward heads and fo'csle, between saloon and aft quarters and between aft quarters and lazarette.
Sails and running rigging, cockpit seats and companionway hatch were supplied.

DIMENSIONS

LOA 40 ft 12.20 m

LWL 32 ft 9.76 m

BEAM 12 ft 1¼ 3.70 m

DRAFT 6 ft 5¾ 1.98 m

DISPLACEMENT 13.58 tons 13.80 tonnes

BALLAST 5 tons 5.08 tonnes

SAIL AREAS

MANSAIL 360 sq ft 33.48 sq m

JIB 200 sq ft 18.60 sq m

STAYSAIL 135 sq ft 12.53 sq m

TOTAL WORKING 695 sq ft 64.61 sq m

TRISAIL 67.5 sq ft 6.27 sq m

STORM STAYSAIL 80 sq ft 7.44 sq m

CONSTRUCTION

HULL High quality GRP moulding. Lloyds register hull release note supplied.

BALLAST KEEL Cast iron.

DECK GRP single moulding, bonded to hull overlapped and resin sealed.

SPECIFICATION

ENGINE Yanmar 53 HP four cylinder normally aspirated diesel, with Aquadrive fitted.

ELECTRICS 12 volt 120Ah engine, 480 Ah domestic. AC shorepower link through isolation transformer. AC powers sockets, immersion heater and battery charger.

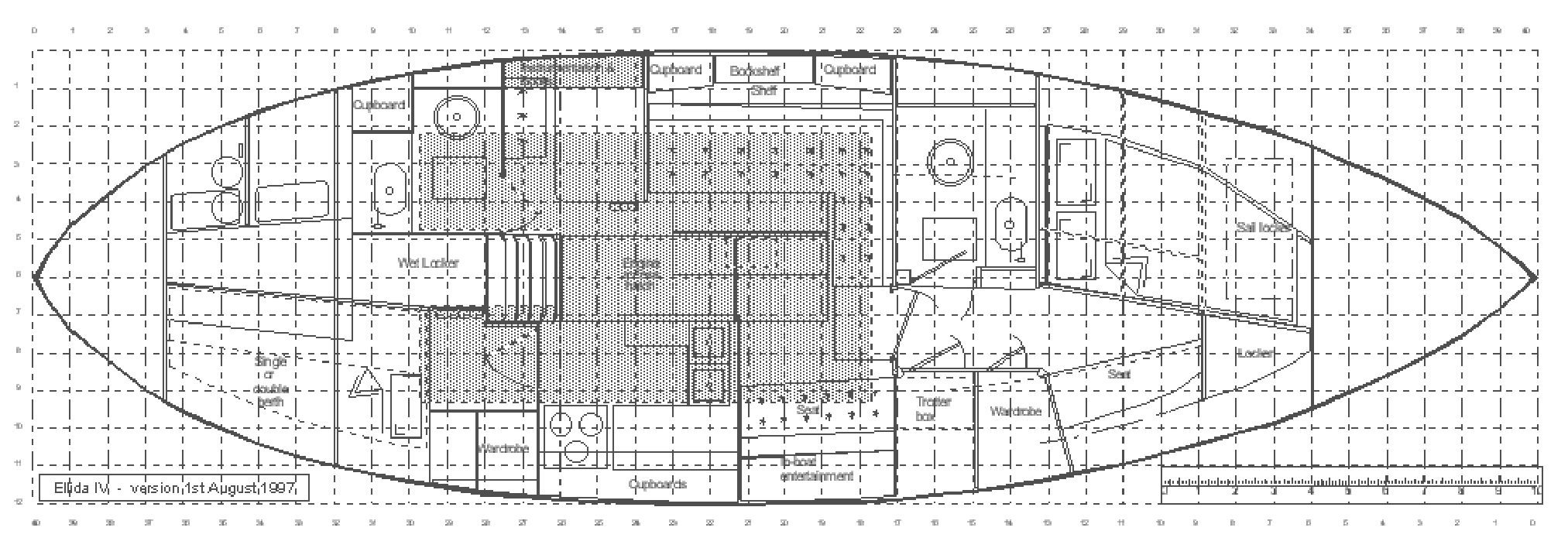

ACCOMMODATION Forecabin with double and seat, separate heads/shower two wardrobe/lockers. Saloon includes galley and nav area, seating for six and table. Aft heads and wet locker. Aft cabin with double and two wardroe/lockers.

GALLEY J shaped galley, double sink, refrigerator (Peltier principle), gimballed Taylors cooker and good storage

WASTE WATER Grey water tank capacity 5 gallons accepts water from both heads and galley. Whale Gulper pump plus manual backup. Black water holding tank 50 gallons approx hand pumped via Lavac fwd heads, also with shore drain facilities. Bilge electric automatic plus manual backup.

DIMENSIONS
LOA	40 ft	12.20 m
LWL	32 ft	9.76 m
BEAM	12 ft 1¼	3.70 m
DRAFT	6 ft 5¾	1.98 m
DISPLACEMENT	13.58 tons	13.80 tonnes
BALLAST	5 tons	5.08 tonnes

SAIL AREAS
MANSAIL	360 sq ft	33.48 sq m
JIB	200 sq ft	18.60 sq m
STAYSAIL	135 sq ft	12.53 sq m
TOTAL WORKING	695 sq ft	64.61 sq m
TRISAIL	67.5 sq ft	6.27 sq m
STORM STAYSAIL	80 sq ft	7.44 sq m

CONSTRUCTION
HULL	High quality GRP moulding. Lloyds register hull release note supplied.
BALLAST KEEL	Cast iron.
DECK	GRP single moulding, bonded to hull overlapped and resin sealed.

SPECIFICATION
ENGINE	Yanmar 53 HP four cylinder normally aspirated diesel, with Aquadrive fitted.
ELECTRICS	12 volt 120Ah engine, 480 Ah domestic. AC shorepower link through isolation transformer. AC powers sockets, immersion heater and battery charger.
ACCOMMODATION	Forecabin with double and seat, separate heads/shower two wardrobe/lockers. Saloon includes galley and nav area, seating for six and table. Aft heads and wet locker. Aft cabin with double and two wardroe/lockers.
GALLEY	J shaped galley, double sink, refrigerator (Peltier principle), gimballed Taylors cooker and good storage
WASTE WATER	Grey water tank capacity 5 gallons accepts water from both heads and galley. Whale Gulper pump plus manual backup. Black water holding tank 50 gallons approx hand pumped via Lavac fwd heads, also with shore drain facilities. Bilge electric automatic plus manual backup.
